VOLVO EC250DL 18 Meters Long Reach Arm and Boom

VOLVO EC250DL 18 Meters Long Reach Arm and Boom

Total weight: 4550 Kgs including bucket

Includes support structure for easy packing and transport

CE marking

Advantages

- Computer analysis of long arm stress distribution and optimization of the design structure

- Use of large milling equipment to improve welding

- Use of cold-rolled precision steel to flush pipes and finish with phosphoric acid to make pipes smoother, reduce hydraulic oil flow resistance, and reduce oil line contamination

- Top quality welding using robots

- Use ultrasonic non-destructive testing to ensure weld quality

- Using top quality boring machine to ensure the parallelism of pin hole

- All products are sandblasted to ensure a clean and neat product appearance

- Using top quality cylinder

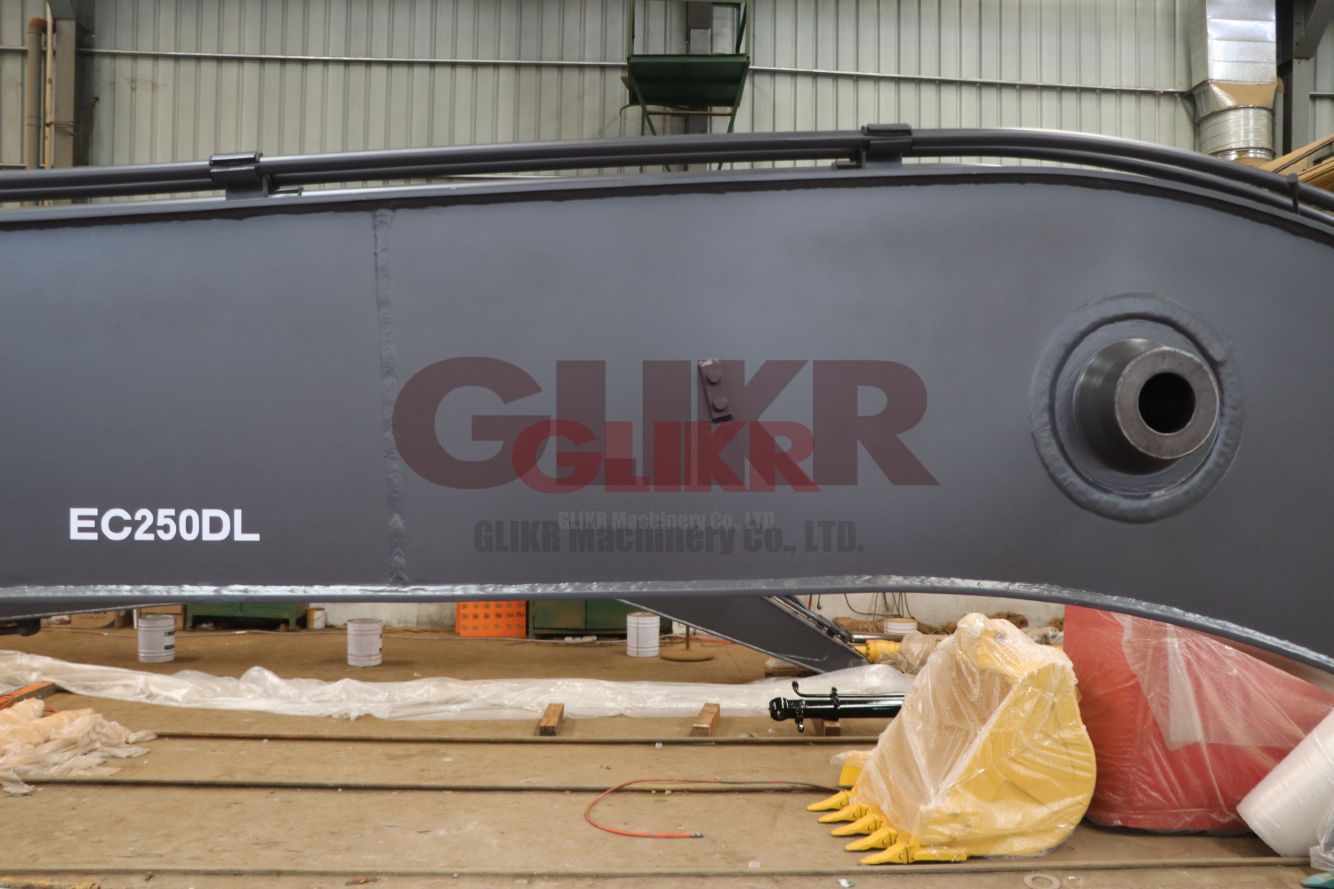

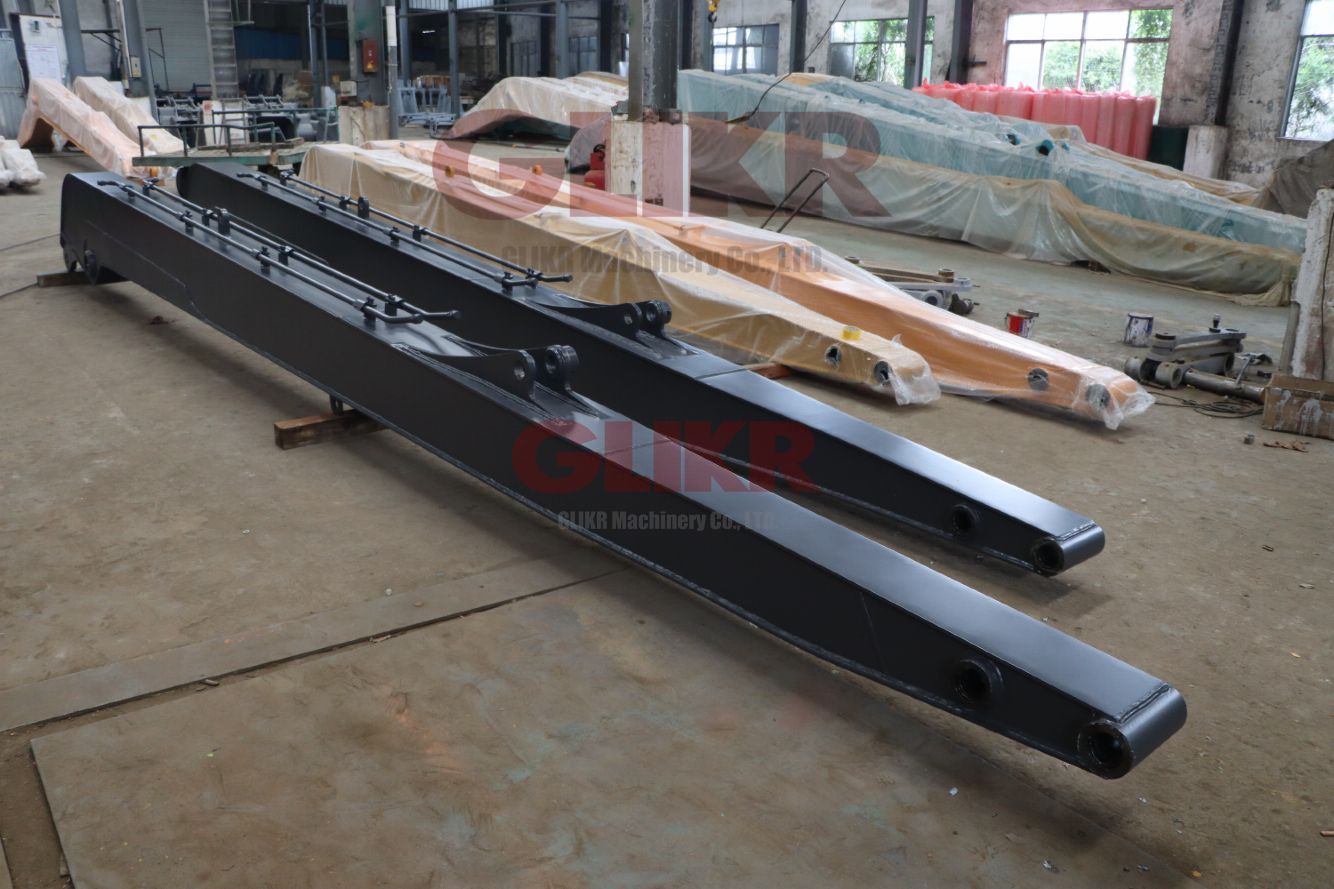

We offer you long reach arms with a total length of 18 meters for the VOLVO EC250DL excavator.

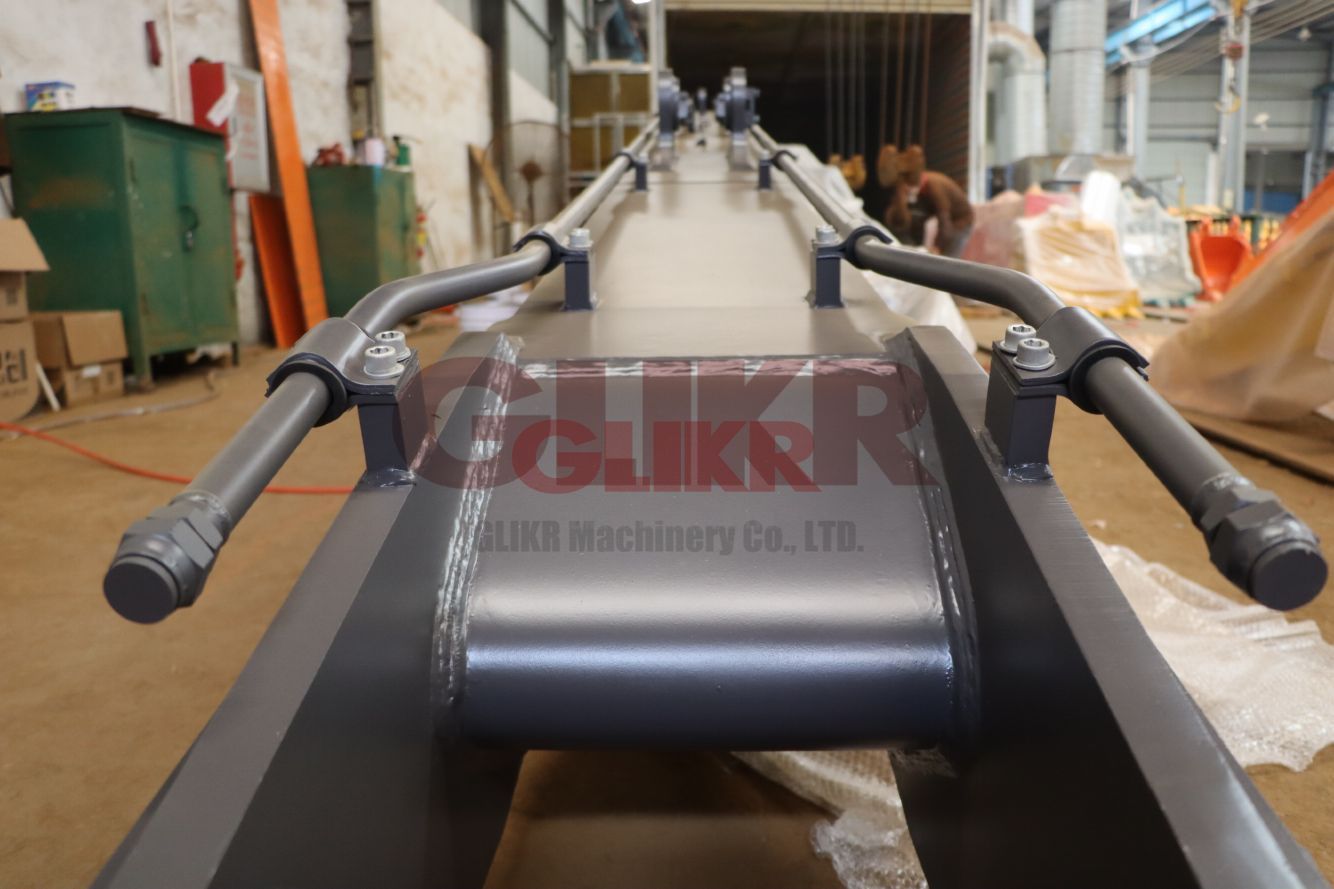

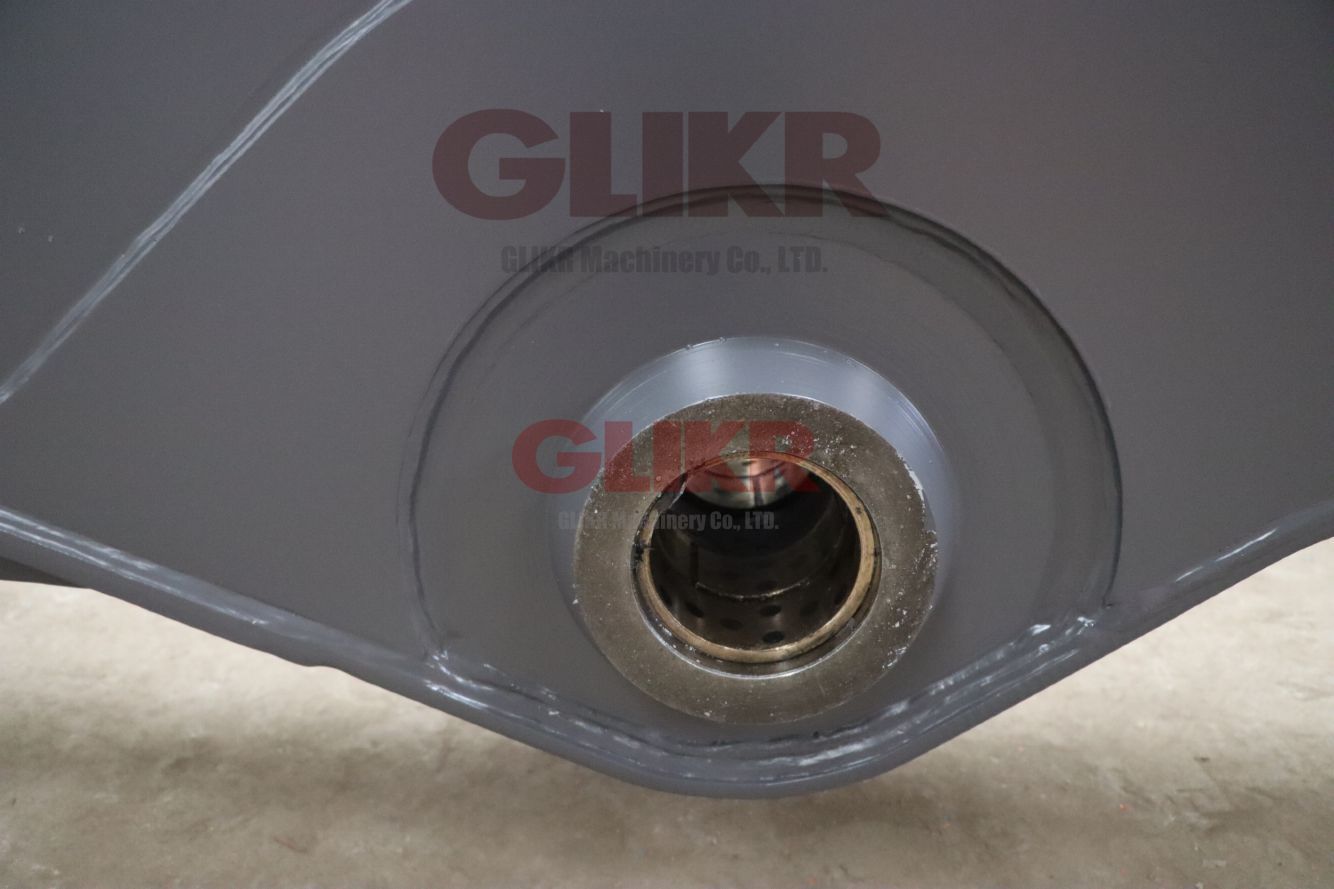

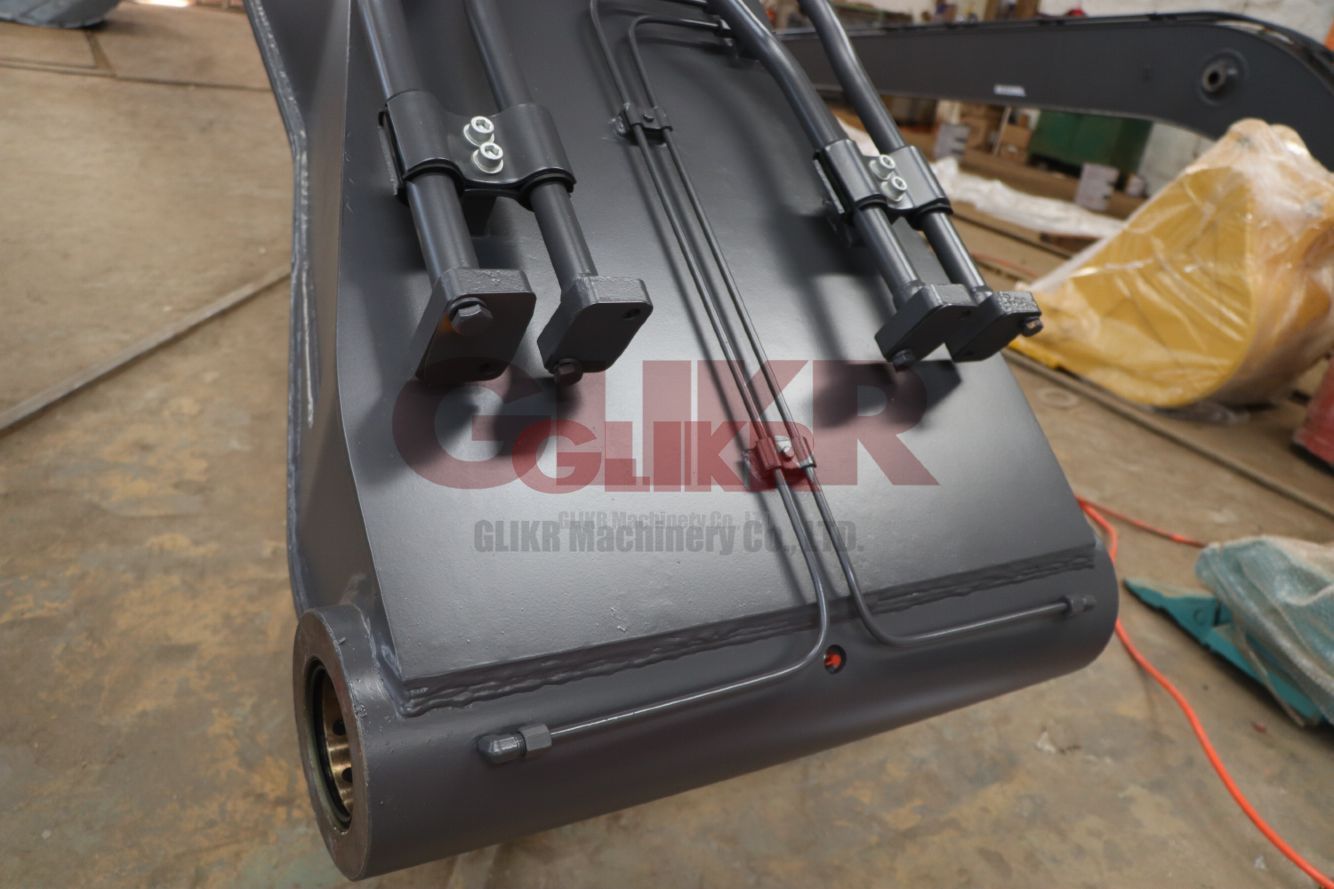

Our long reach arm is customized to fit your excavator perfectly and comes with full hydraulic piping, pins, bronze bushings and bucket cylinders.

Available with a variety of buckets, universal buckets, as well as skeleton, rock, sweep, and hydraulic sweep. Counterweights are available to balance the machine while increasing bucket capacity by 10-20%.

Bucket rod cylinders are not included in the quote. However, most of our customers use the cylinders from their original arms.

Upon request, we can provide used but reconditioned bucket bar cylinders with a 1 year warranty or new.

We also have a matching excavation bucket in stock - 900 mm, 600 liter volume.

Available for immediate use at extra cost!

Other buckets (also hydraulic) available on request!

If you need different lengths or long distances for different machines, please send us a specific request!

Glikr Machinery is a professional OEM supplier of long arms and booms for branded excavators in China, contact us!
