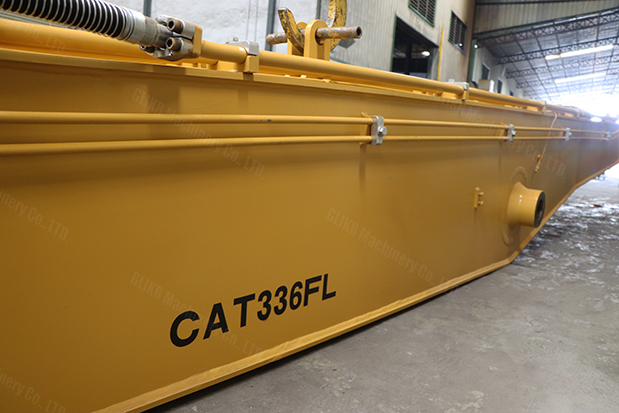

CAT336 16.4M Material Handling Arm and Boom

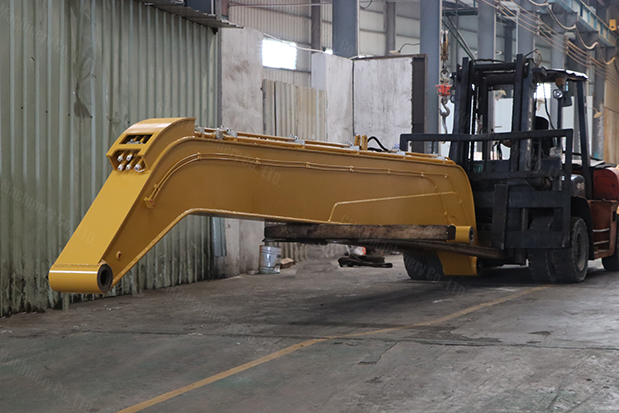

Designed the boom longer than the standard boom, and the arm curved and longer type.
Using double arm cylinders design for adapting wide working efficiency.Offering enough working power.
For Catalogue / Installation Files, Please Email Us via email@example.com
1- Premium steel plates, Strenx700 (Weldox700) or equivalent and precise cutting by using CNC cutting
2- Side Plates are beveled prior to welding to ensure strength being maintained. Design Is simulated
extensively, ensuring design integrity and detecting potential stress and fatigue points.
3- Welding process is mainly by high tech robotic welding machine and some parts by manual welding
with over 15 years experience. To guarantee the durability, conformance in quality and solidity.

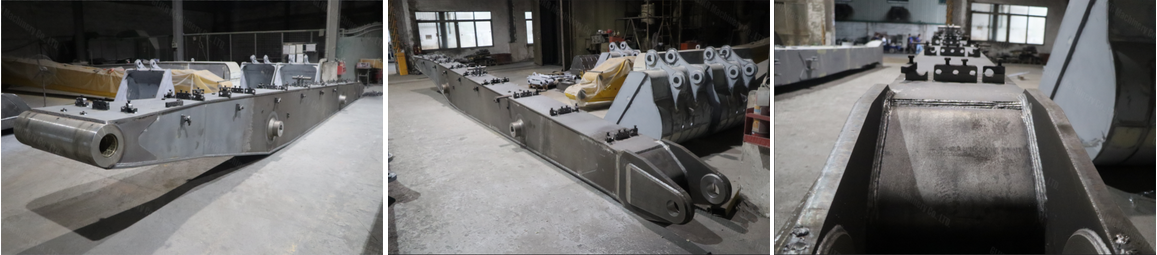

4- Inside of Booms with we design baffle plates that make booms strong and durable to withstand torsional loads.
All arm and boom front are shot blasted to ensure that the surface is thoroughly clean and free from contaminants and rust.
In addition, this process presents the steel with a surface texture that provides excellent adhesion for prime coat of paint.
Straight/Curved main boom design according to your working range requirement.
Twin / single underslung cylinder fully exploit cylinder's force for material lifting.
Additional counterweight is available.
Clamshell/orange peel grab/rock grapple are optional depond on application.
